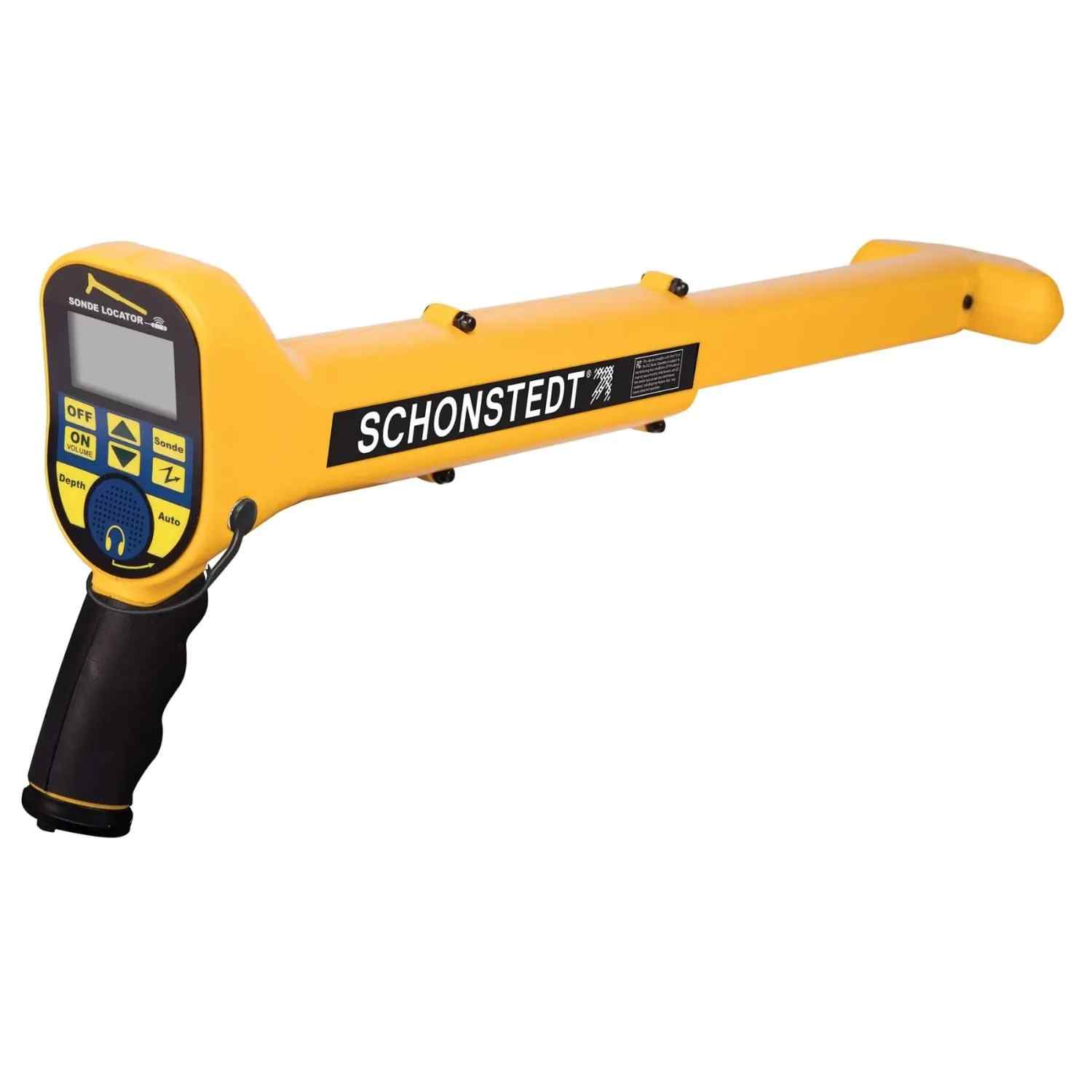

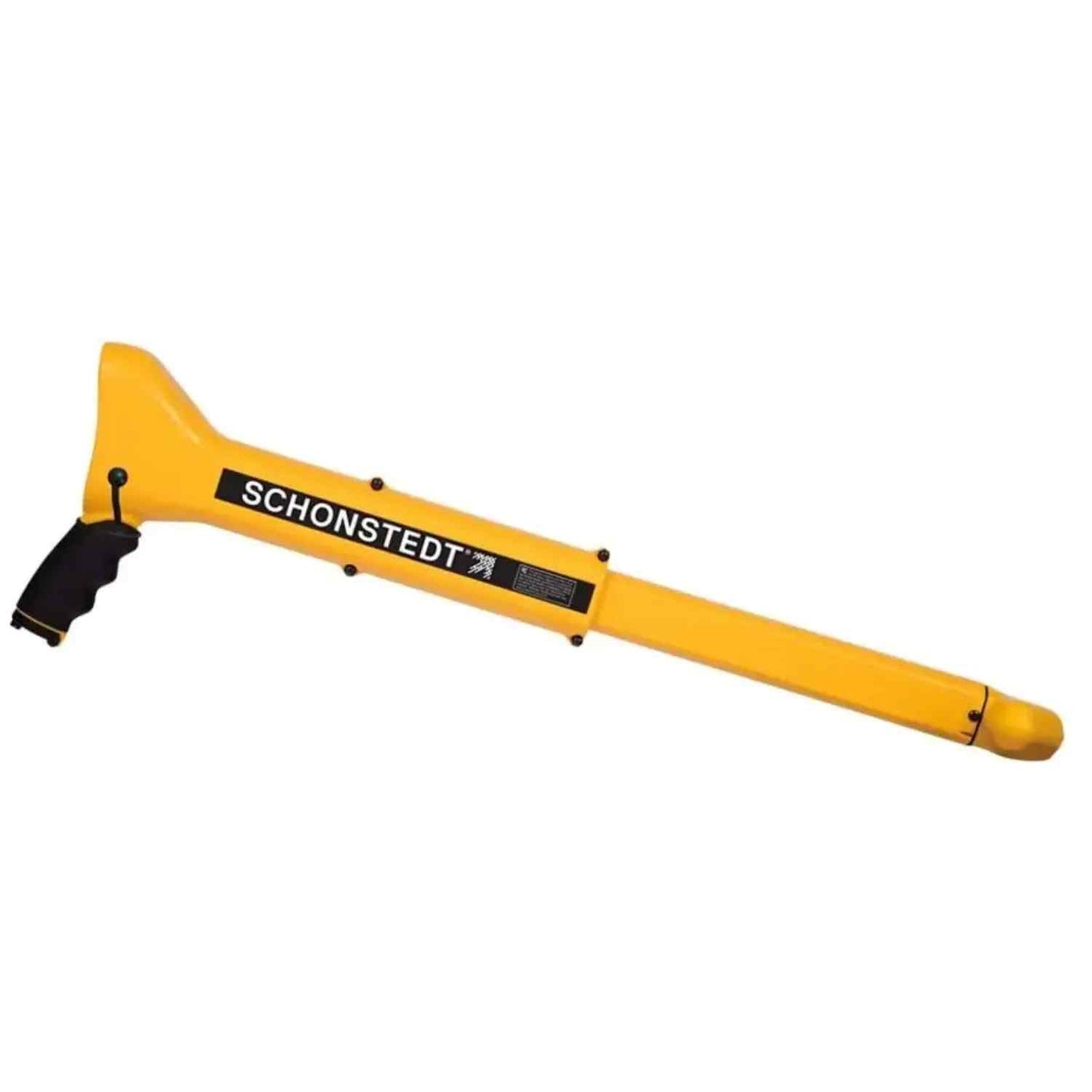

XT-512 Sonde & Camera Locating

Locates Blockages Quickly
The XT-512 combines the portability of the XTpc package with the low frequency sonde and passive locating capability found in larger more cumbersome locators. With the XT-512 you can locate and determine the depth of your sewer/pipe inspection camera or a small sonde. The XT512 is useful in locating blockages and obstructions in non metallic pipe.

Operates on 512 Hz Frequency mode
Passive detection of 50Hz or 60Hz, and sondeXT512 pipe, camera and sonde locator is Rated IP54 Dust & Water Resistant
One button depth measurement
Digital readout display of signal strength (peak)
Audio & Visual Output
Battery & Sensitivity Indicators
Ergonomic & lightweight
Smallest for easy storage
3-year warranty

BATTERY One 9V battery
BATTER LIFE 12 hours (intermittent use)
WEIGHT Under 2.8 lbs
OPERATING TEMP -4°F to 140°F (-20°C to 70°C)
SENSORS Split angled sensors to derive peak and null signals
Sonde/Camera Locator
