Tamaya Planix Series - Digital Planimeters

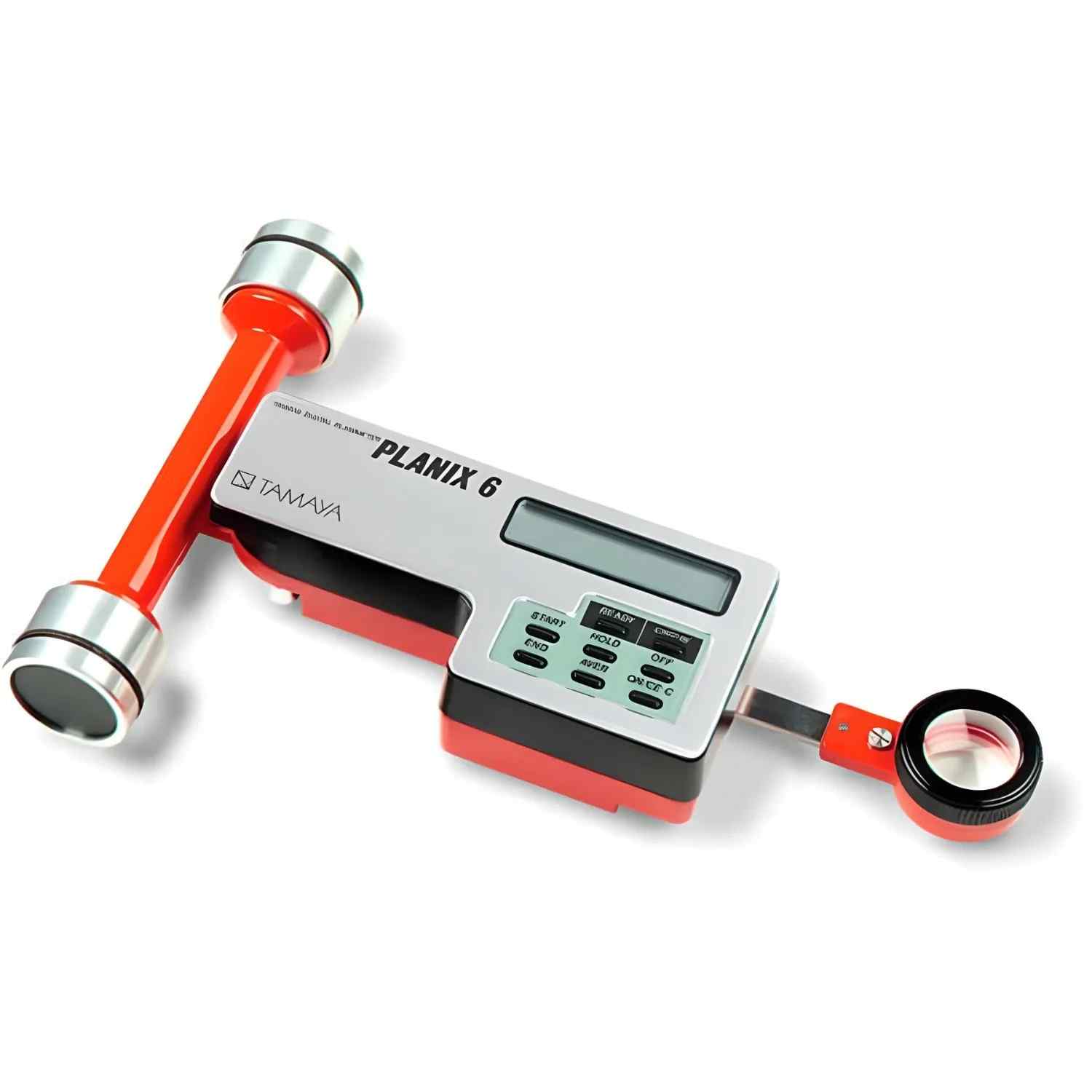

Electronic roller measurement The Planix 6 has an 8-digit readout and runs for up to 30 hours continuously using a rechargeable NiCad battery. Its features include selectable metric or English scales, averaging of multiple measurements, display retention, cumulative measurement and electronic zeroing. A battery power saving feature automatically turns off the instrument when left idle for more than three minutes. The Planix 7 offers all the functionality of the Planix 6, as well as displaying areas directly in terms of square centimeters, meters, inches, feet or acres, as well as the ability to enter different X and Y scale factors. Key features and specifications of Planix 6 and 7 include: Measurement of area, average and cumulative total LCD display with zero suppression Accuracy greater than 0.2% Ideal for measuring elongated areas Enter a separate X and Y scale (Planix 7 only) Full numeric keypad (Planix 7 only) Compact, precise and ergonomic, the 10S is ideal for rapid and precise determination of areas on plans, maps, photographs, drawings, etc. It combines the area measurement function with the ability of a digitizer to measure straight lines by a simple two-point tracing method and curved lines by continuous measurement. Tamaya – Planix 10S – Planimeter Key features and specifications of Planix 10S include: Line switching function allows you to switch between point (straight) and streaming (curves) mode Total and average as you go Measuring Functions: Area, Line and Side Length(s) Units of measurement: in., Ft., Acre/yd, mm, cm, m, km Measuring range: approximately 12 in x 380 in (300 mm x 10 m) Measuring accuracy: +/- 0.1% (4" x 4" area measurement) Display: LCD 16 characters on two lines Minimum line reading: 0.05mm Power: Internal NiMH battery offering 20 hours; or use an AC charger/adapter
