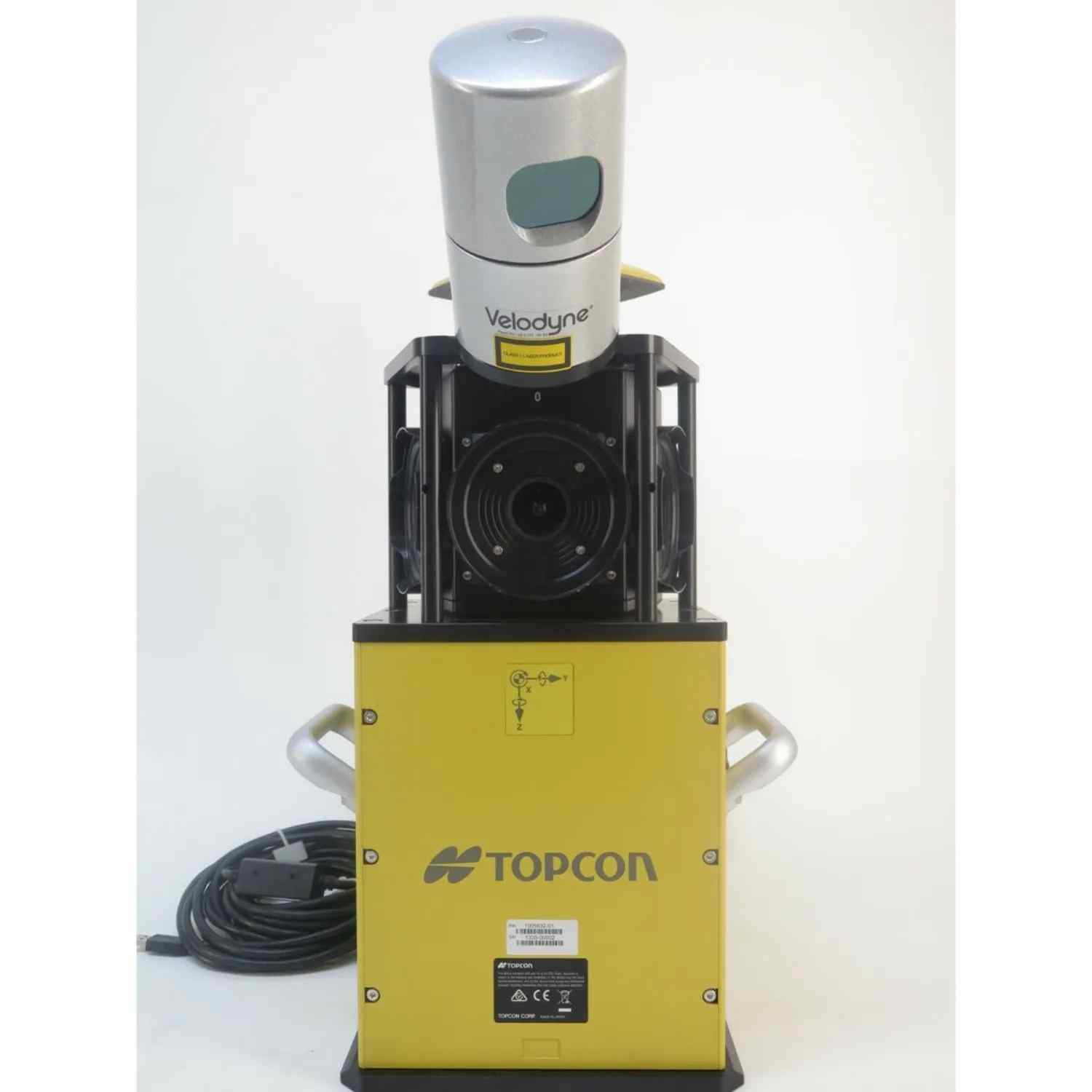

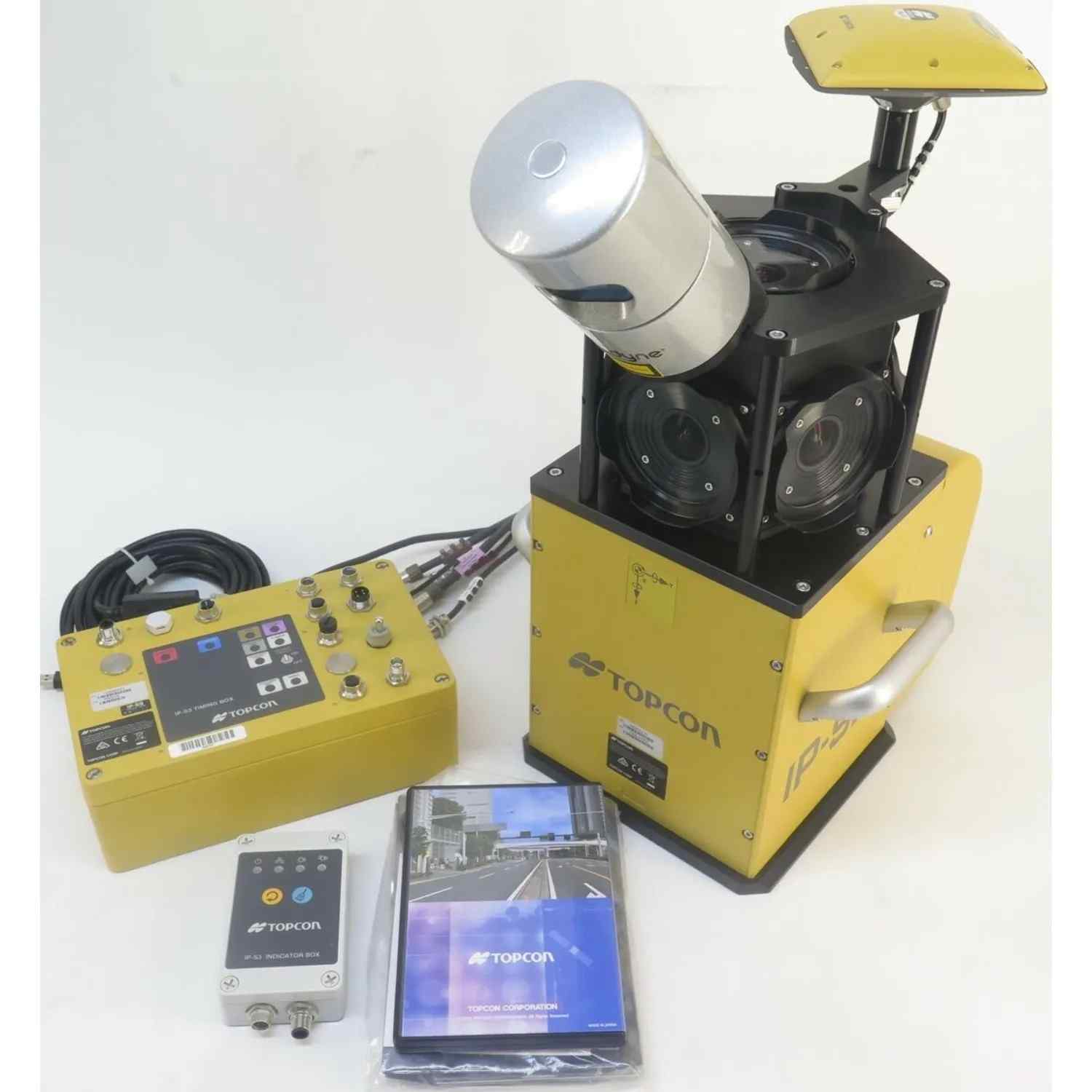

IP-S3 HD1 - 3D Mobile Mapping System

A high-density and compact 3D mobile mapping system

The IP-S3 Mobile Surveying System provides high-density, high-precision point clouds with high-resolution panoramas from a smaller, lighter, easier-to-handle system.
The IP positioning system-53 is the integration of an inertial measurement unit (IMU), a GNSS receiver (GPS and GLONASS) and the odometer of a vehicle. It provides precise positioning and attitude in a dynamic environment.

The rotating LIDAR sensor captures the environment with a rate of 700,000 pulses per second. During each rotation,
the 32 internal lasers cover all 360 degrees around the system, each from a slightly different viewing angle. This reduces gaps in the point cloud generated by obstacles or blind spots and avoids installing multiple scanners.

The system with six-lens digital camera IP-
S3 provides high-resolution 360-degree spherical images, which make recognition much easier.

The Mobile Master Office software processes all post-processing trajectories and georeferencing scans and images.

Integrated turnkey solution
Ultra-compact format
Using lasers reduces scanning shadows
Unparalleled ease of use
Factory calibrated
Full cloud and image integration
