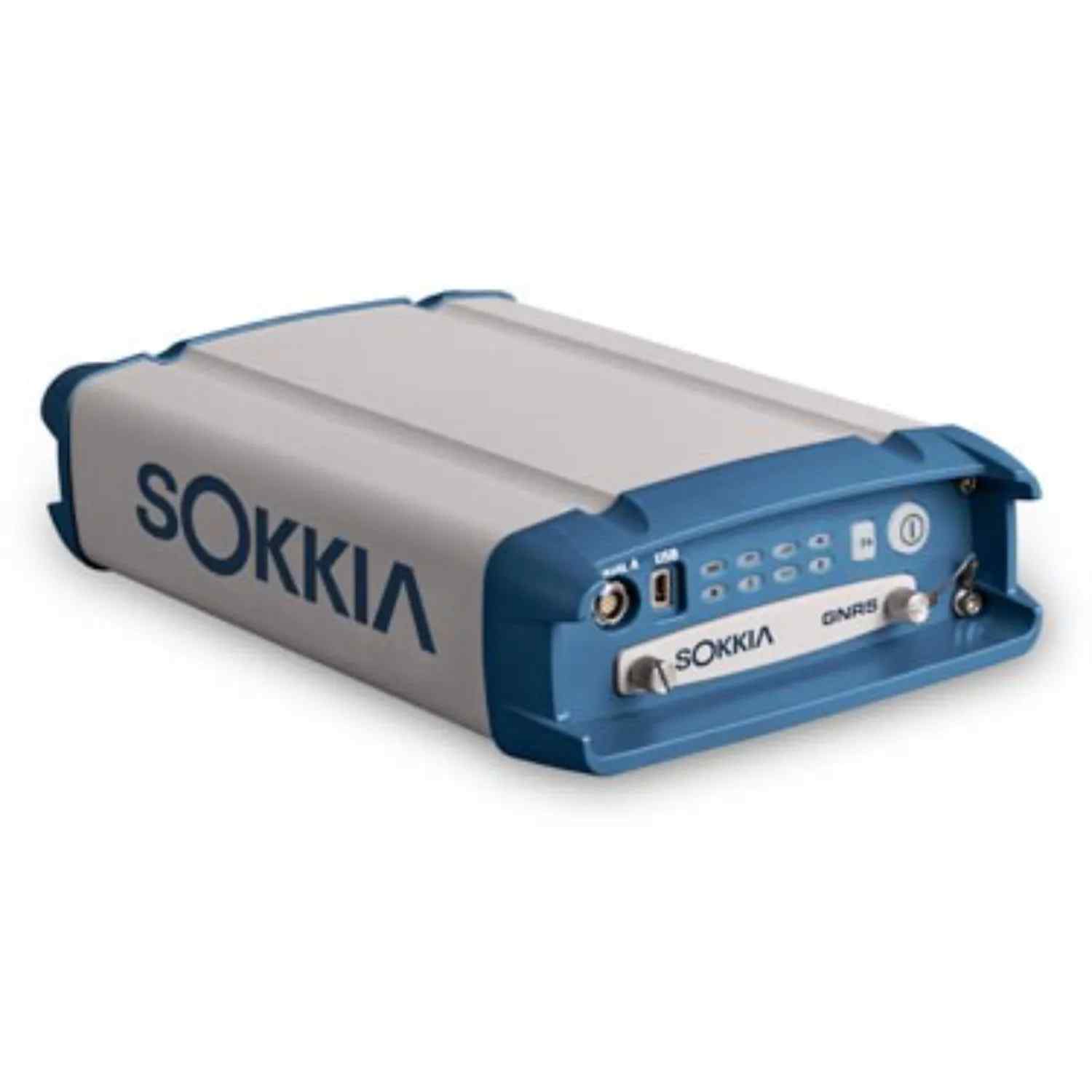

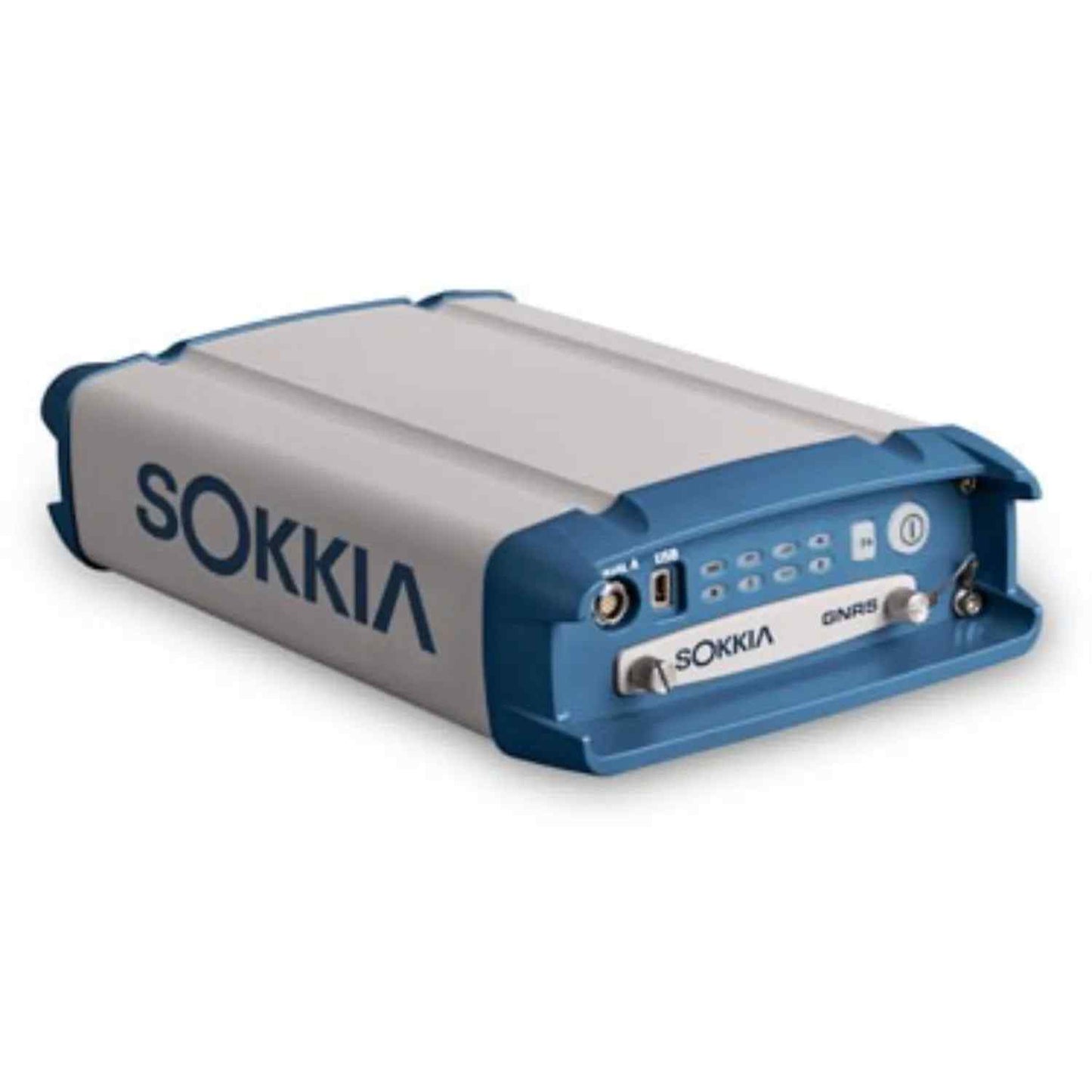

GNR5 GNSS Reference Receiver

The GNR5 is a GNSS reference receiver for many types of applications among other GNSS infrastructure network receivers, permanent reference stations, field (mobile) base stations and reference stations for scientific analysis.

The GNR5 is capable of tracking all GNSS constellation including GPS, GLONASS, Beidou, Galileo, QZSS as well as SBAS using 452-Channels with optimized satellite tracking technology. In short, the GNR-5 has a rugged and integrated design with longer operating time and high reliability. The GNR5 supports an extended communication options with an advanced web-server functionality.

452-Channels with optimized satellite tracking technology
Superior signal tracking across the entire GNSS spectrum
High-precision code and carrier phase measurements up to 100 Hz
Built-in Bluetooth® and Wi-Fi connectivity
Integrated web interface with advanced receiver management features
32GB SDHC storage support
Number of Channels 452-Channel with optimized satellite technology
Signals Tracked GPS, GLONASS, QZSS, SBAS, Galileo, L-Band and BeiDou (BDS)
Dimensions (w x d x h) 5.9 x 7.9 x 2.4 in. (150 x 200 x 60 mm)
Weight Less than 2 kg
Power Consumption Less than 5.0 W (typical)
Operating Temperature -40°C to 80°C with external power / -30°C to 65°C with integrated batteries
